MPN: FW-Z9-P2
Manufacturer: Freewave
Frequency: 902-928MHz
ZumLink Radio (4 port), 900 MHz, TNC. Hardware Only, Frequency Range of 902 to 928 MHz, Four RJ-45 Data Connectors, One Micro-USB Connector (Type A), 1 GB of Storage for Third Party Applications & 1 GB of RAM, Operating Temperature of -40°C to +85°C (-40°F to 185°F), Withstands Humidity Levels of 0% - 95%, Packet Compression and Packet Aggregation, Link Throughput up to 1.6 Mbps; 4 Mbps with Compression, Transmitting Current of 377 mA @ 12 VDC, Receiving/Idle Current of 159 mA @ 12 VDC, Safety Class 1 Division 2 Groups A-D KEY FEATURES • Multi-High Speed Data Rates™ o Five RF Link Rates supporting throughputs from 80 kbps to 4 Mbps • Programmability o Flexible user configuration along with acceptance of 3rd party applications o ZumIQ provides a Linux-based Debian operating system and storage for applications built in Node-RED, JavaScript, Java, Python and C++ • Security o 128-bit and 256-bit AES counter mode encryption • Long Range o Up to 60 miles (line of sight) • Low Current Consumption.
Contact us today to request a quote.
MPN: FW-Z9-PE
Manufacturer: Freewave
Frequency: 902-928MHz
ZumLink 900 MHZ Series Ethernet Radio, Enclosed, 902 to 928 MHz Frequency Range, Up to 4Mbps Throughput This cost effective, high-speed, rugged communication platform is specifically designed for outdoor industrial locations and is reliable under extreme environmental conditions. Its advanced technology makes it ideal in field area networks for oil and gas, utilities, mining, facility automation, municipalities, disaster recovery, or any industrial application that needs extremely reliable communications. ZumLink’s flexible, high speed, low power consumption radios also leverages FreeWave’s ZumBoost™ Network Acceleration Pack to assure the most efficient network platform possible. ZumBoost introduces techniques such as compression, packet aggregation, forward error correction, and patent-pending Adaptive Spectrum Learning technology to ensure maximum throughput to meet the demands of today’s wireless applications. ZumLink includes the ZumIQ Application Environment which allows the development and deployment of third-party applications and puts intelligence at the edge. ZumIQ provides a Linux-based Debian operating system and storage for applications built in Node-RED, JavaScript, Java, Python and C++.
Contact us today to request a quote.
MPN: FW-Z9-PE2
Manufacturer: Freewave
Frequency: 902-928MHz
Zumlink Z9-PE2 Radio, 4 port, enclosed, 900MHz, TNC. Hardware Only Frequency Range of 902 to 928 MHz, Four RJ-45 Data Connectors, One Micro-USB Connector (Type A), 1 GB of Storage for Third Party Applications & 1 GB of RAM, Operating Temperature of -40°C to +75°C (-40°F to 167°F), Withstands Humidity Levels of 0% - 95%, Packet Compression and Packet Aggregation, Link Throughput up to 1.6 Mbps; 4 Mbps with Compression, Transmitting Current of 377 mA @ 12 VDC, Receiving/Idle Current of 159 mA @ 12 VDC, Safety Class 1 Division 2 Groups A-D KEY FEATURES • Multi-High Speed Data Rates™ o Five RF Link Rates supporting throughputs from 80 kbps to 4 Mbps • Programmability o Flexible user configuration along with acceptance of 3rd party applications o ZumIQ provides a Linux-based Debian operating system and storage for applications built in Node-RED, JavaScript, Java, Python and C++ • Security o 128-bit and 256-bit AES counter mode encryption • Long Range o Up to 60 miles (line of sight) • Low Current Consumption
Contact us today to request a quote.
MPN: FW-Z9-P
Manufacturer: Freewave
Frequency: 902-928MHz
ZumLink 900 MHZ Series Ethernet Radio, Board Level, 902 to 928 MHz Frequency Range, Up to 4Mbps Throughput This cost effective, high-speed, rugged communication platform is specifically designed for outdoor industrial locations and is reliable under extreme environmental conditions. Its advanced technology makes it ideal in field area networks for oil and gas, utilities, mining, facility automation, municipalities, disaster recovery, or any industrial application that needs extremely reliable communications. ZumLink’s flexible, high speed, low power consumption radios also leverages FreeWave’s ZumBoost™ Network Acceleration Pack to assure the most efficient network platform possible. ZumBoost introduces techniques such as compression, packet aggregation, forward error correction, and patent-pending Adaptive Spectrum Learning technology to ensure maximum throughput to meet the demands of today’s wireless applications. ZumLink includes the ZumIQ Application Environment which allows the development and deployment of third-party applications and puts intelligence at the edge. ZumIQ provides a Linux-based Debian operating system and storage for applications built in Node-RED, JavaScript, Java, Python and C++.
Contact us today to request a quote.

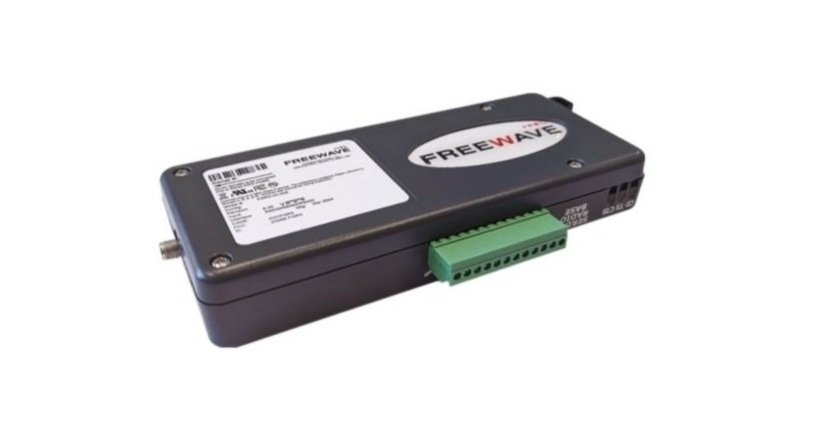

MPN: FW-FGR3-CE-U
Manufacturer: Freewave
Frequency: 902-928MHz
FGR3 900 MHz Industrial Radio, Rugged Enclosure, Operates on 902 to 928 MHz Frequency Range (Unlicensed), Up to a Range of 60 miles with Clear Line-of-Sight, User-Selectable Standard-Speed vs. High-Speed RF Data Rate (115.2 kbps vs. 153.6 kbps), FHSS (Frequency Hopping Spread Spectrum) Data Transmission Type, Data Encryption Options: AES 128- / 256-bit encryption and PSST, 16 User-Selectable Hopping Zones, 50 to 112 User-Selectable Hopping Channels, 105 User-Selectable Hopping Patterns Total (15 per band), 6 – 30 VDC Required (> 7.5 VDC Recommended), Operating Temperature of -40°C to +75°C (-40°F to +167°F), Capable of Withstanding Humidity Levels of 0 to 95%, Safety Class I, Division 2 Groups A-D Key Features • Versatility o Gateway, Endpoint, Repeater or simultaneous Endpoint and Repeater function in a single radio • Long Range o Up to 97 km (60 miles) with clear line of sight with the ability to extend through Repeaters • Noise Immunity o Superior performance in noise congested environments • Secure o Using Frequency Hopping Spread Spectrum (FHSS) technology; available with 128- and 256-bit AES encryption • Error Free Communications o 32-bit CRC with automatic retransmissions • Low Power Consumption o Ideal for solar, battery, and DC applications • Industrial Grade o Operating temperature from -40°C to +75°C • UL Approved o Class I, Division 2
Contact us today to request a quote.

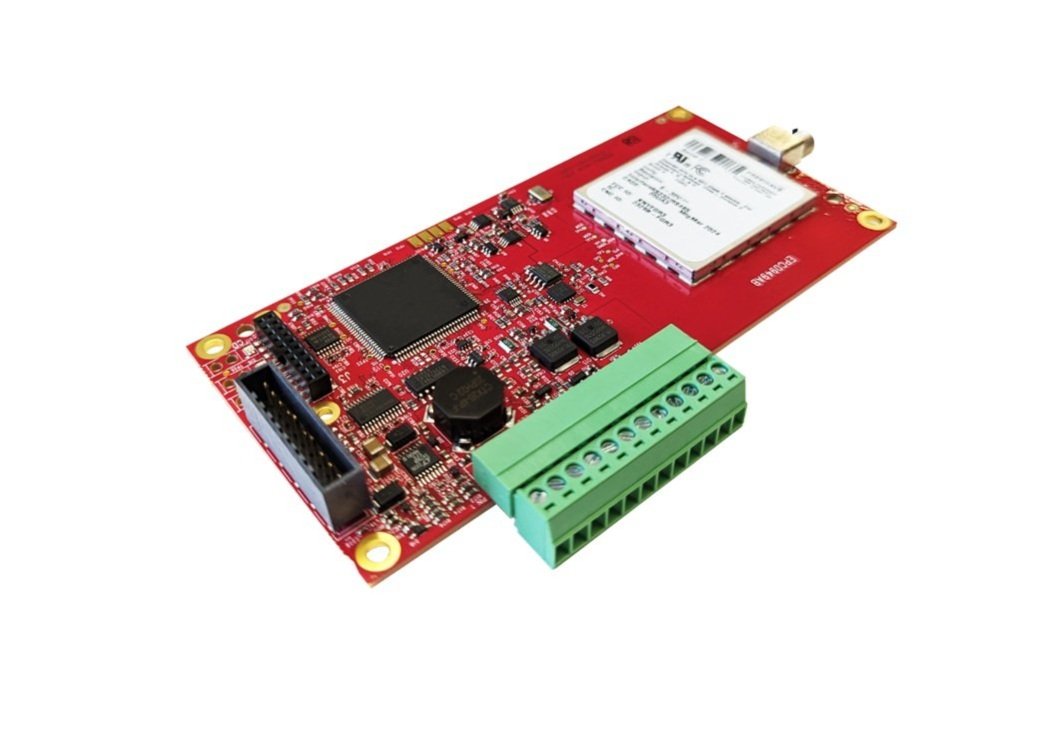

MPN: FW-FGR3-C-U
Manufacturer: Freewave
Frequency: 902-928MHz
FGR3 900 MHz Industrial Radio, Board Level, Operates on 902 to 928 MHz Frequency Range (Unlicensed), Up to a Range of 60 miles with Clear Line-of-Sight, User-Selectable Standard-Speed vs. High-Speed RF Data Rate (115.2 kbps vs. 153.6 kbps), FHSS (Frequency Hopping Spread Spectrum) Data Transmission Type, Data Encryption Options: AES 128- / 256-bit encryption and PSST, 16 User-Selectable Hopping Zones, 50 to 112 User-Selectable Hopping Channels, 105 User-Selectable Hopping Patterns Total (15 per band), 6 – 30 VDC Required (> 7.5 VDC Recommended), Operating Temperature of -40°C to +75°C (-40°F to +167°F), Capable of Withstanding Humidity Levels of 0 to 95%, Safety Class I, Division 2 Groups A-D Key Features • Versatility o Gateway, Endpoint, Repeater or simultaneous Endpoint and Repeater function in a single radio • Long Range o Up to 97 km (60 miles) with clear line of sight with the ability to extend through Repeaters • Noise Immunity o Superior performance in noise congested environments • Secure o Using Frequency Hopping Spread Spectrum (FHSS) technology; available with 128- and 256-bit AES encryption • Error Free Communications o 32-bit CRC with automatic retransmissions • Low Power Consumption o Ideal for solar, battery, and DC applications • Industrial Grade o Operating temperature from -40°C to +75°C • UL Approved o Class I, Division 2
Contact us today to request a quote.
