2D Drawing
CAD Drawing
MPN: CP-242010-UL
UL Model No.: RDA-605025

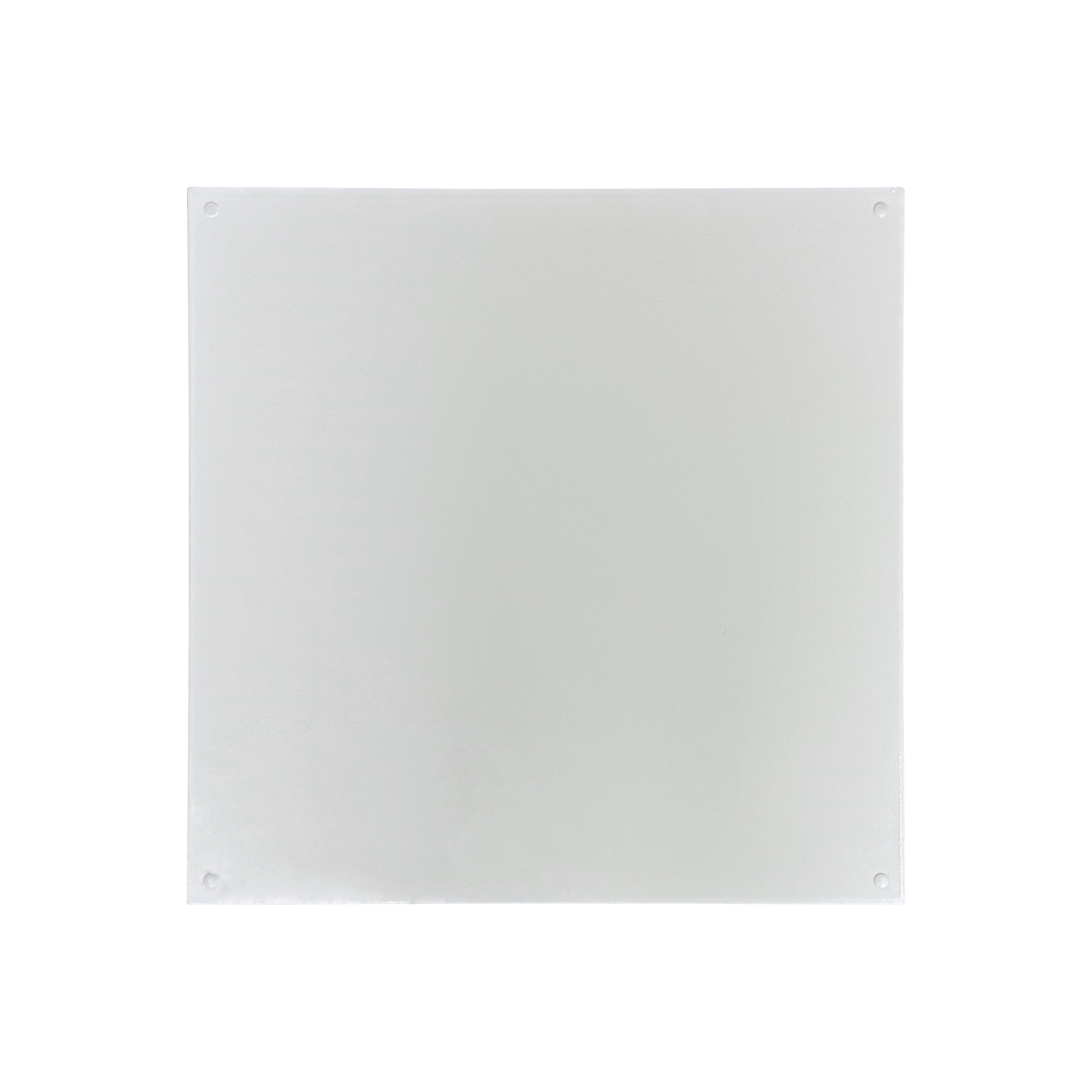

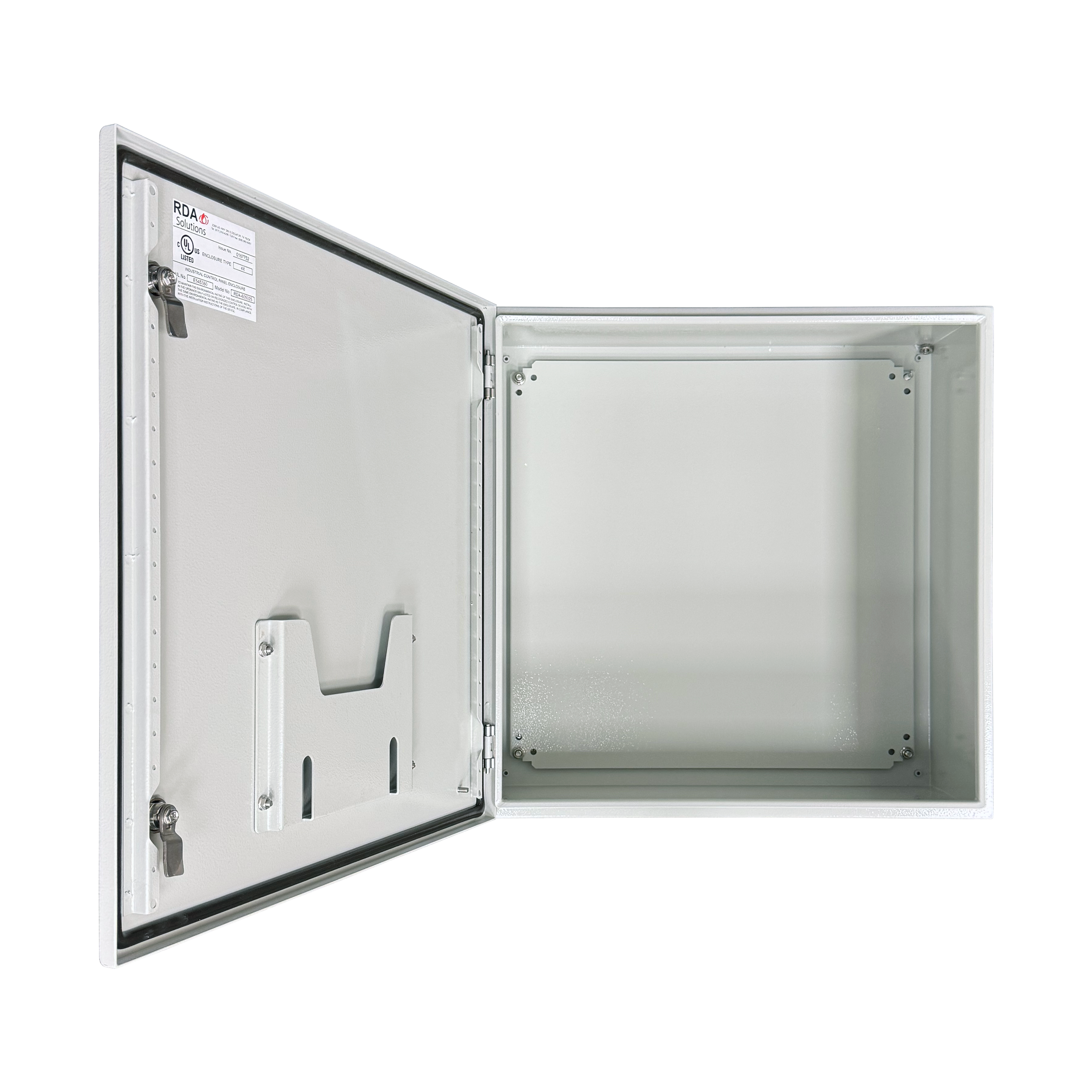

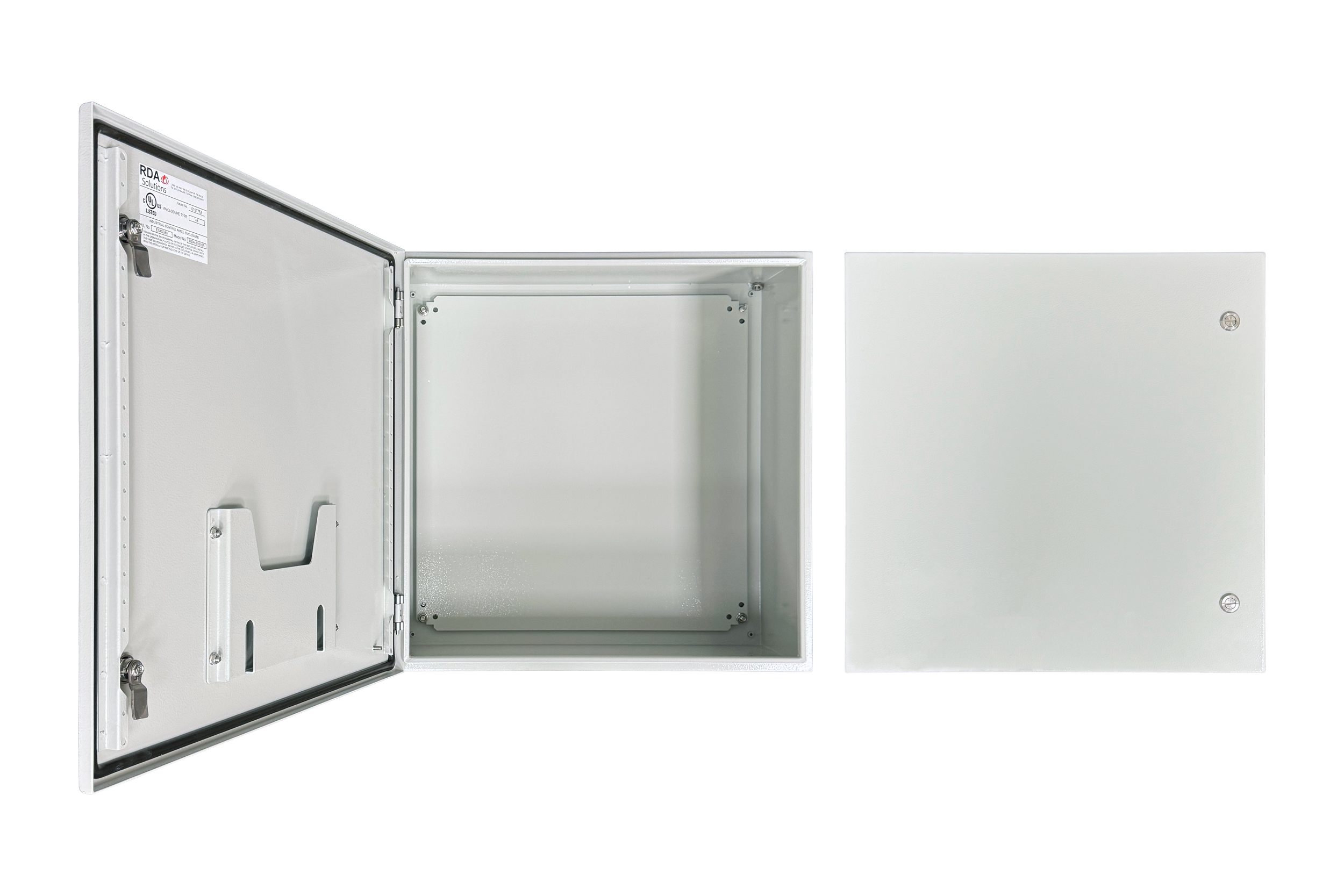

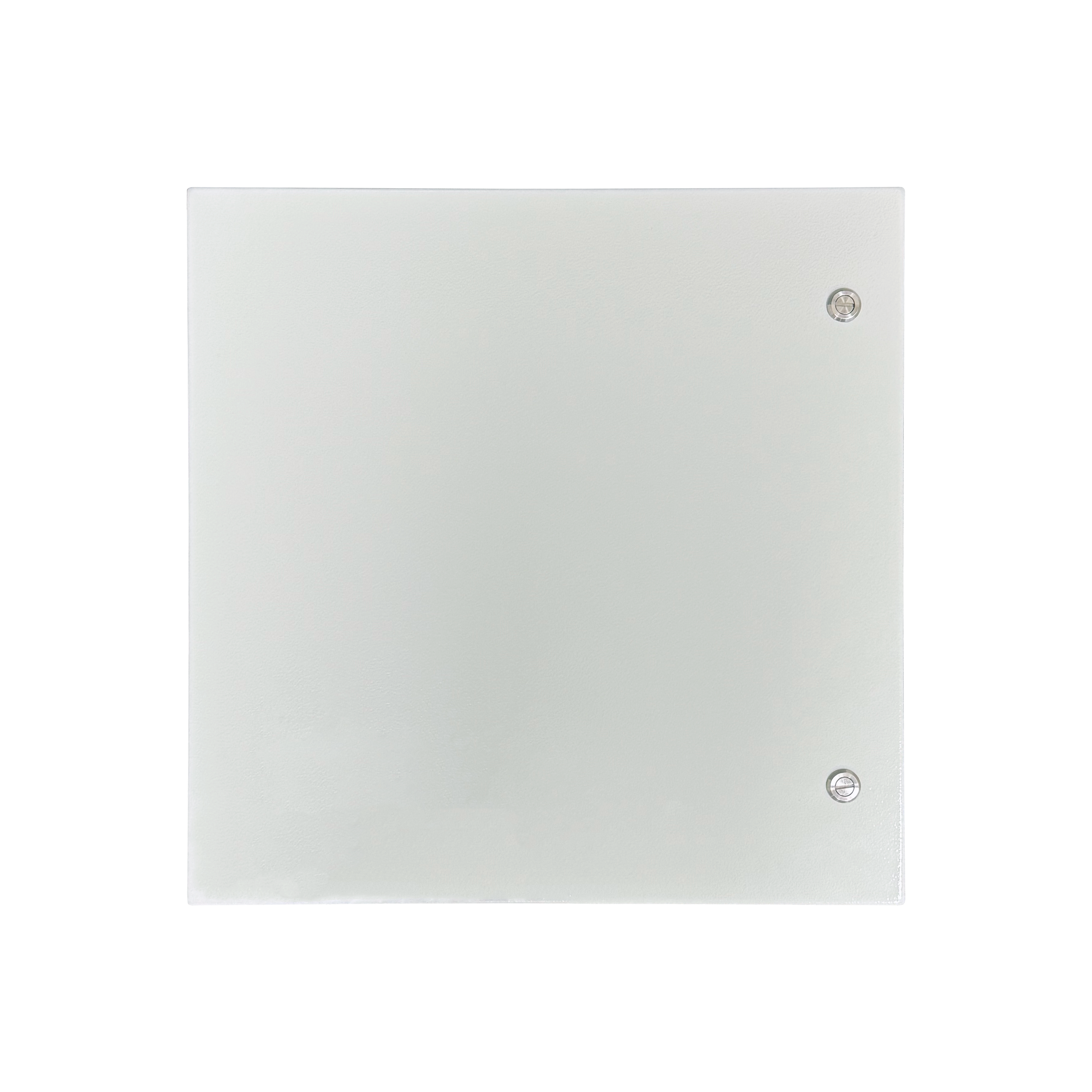

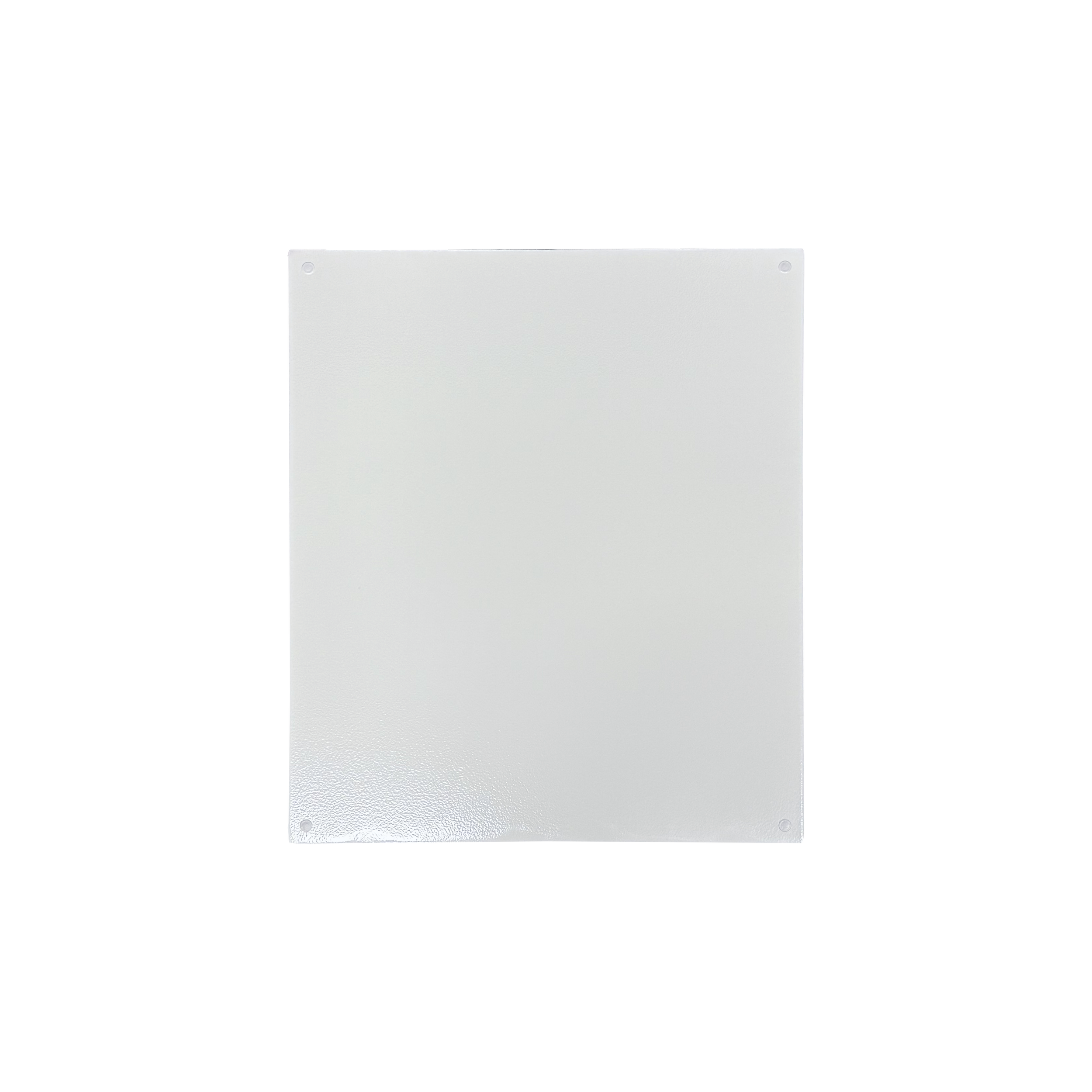

Vizor by RDA 24 × 20 × 10in (HxWxD) Control Panel with Backplate and Document Holder
Material: Pre galvanized steel
Finish: ANSI-61 gray powdercoating
NEMA 3R/4/12/13
UL Listed Type 4X
Contact us today to request a quote.
2D Drawing
CAD Drawing
MPN: CP-242010-UL
UL Model No.: RDA-605025
Vizor by RDA 24 × 20 × 10in (HxWxD) Control Panel with Backplate and Document Holder
Material: Pre galvanized steel
Finish: ANSI-61 gray powdercoating
NEMA 3R/4/12/13
UL Listed Type 4X
Contact us today to request a quote.
